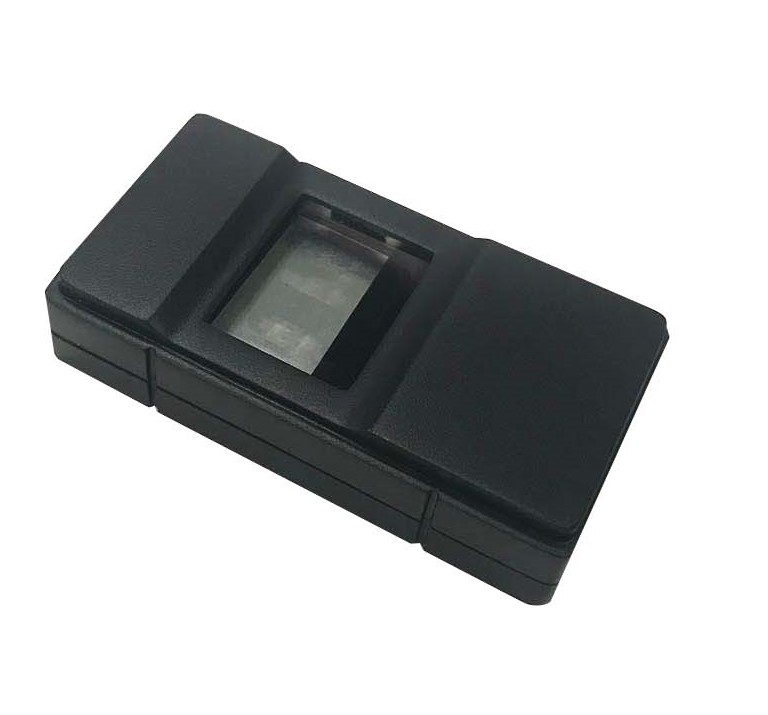

DF200 Single Finger Livescan

The DF200 Module is a lightweight, ultrathin, optical, single finger livescan capture device. It has the characteristics of low power consumption, high sensitivity and high signal-noise ratio. The entire module has a smaller size and stronger interface versatility, which is convenient for customers’ various terminal ID designs. DF200 meets the NIST FAP20 standards. It has advanced adaptive fingerprint recognition algorithms, and it can automatically check image quality in real time, automatically locate the fingerprint image area, and automatically intelligent optimize image quality and support small area recognition. It can realize bidirectional fingerprint input and comparison, and perfectly analyze fingerprints whether in dry or wet environments and incomplete fingerprints as well.

Other products
  • Product details

  • Specifications

    Platen area: L0.65” x W0.83” (16. 4mm x 21.1mm)
    Active platen area: L0.6” x W0.8” (15.24mm x 20.32mm)
    L300 * W400 pixels
    Resolution: 500dpi±1%
    Image distortion: ≤1%
    Image gray range: ≥210 grayscales
    Grayscale: 8-bit, 256 levels
    Connecter/Power: USB 2.0
    Dimension: L56 x W31.5 x H13.4mm (DF200 Module)
    L59.1 x W48.5 x H18.5mm (DF200S Device)
    PC requirement:
    Win7, Win10, 32 or 64bits;
    1.7GHz CPU, 1G RAM, 80G disk, USB 2.0 compliant ports at least.

    Certifications

     FBI  FAP 20.
